Features

• ● Suitable Mediums: WOG (Water, Oil and Gas etc...)
• ● Seals: PTFE/Teflon
• ● Port Size: Reduced Bore Ball Valve (Also called a Standard Port, ID drops one pipe size)
• ● Threads: Female Thread NPT (National Pipe Thread)
• ● Handle Style: Lever style handle, the handle stem is designed to be blow-out proof.
• ● Locking Device: Latch locking lever deviceon the handle so it can be locked in the open & closed position (can be removed).



Performance Specifications:

• ● Pressure: 1000 PSI

• ● Temperature:-4 to 302 degrees Fahrenheit

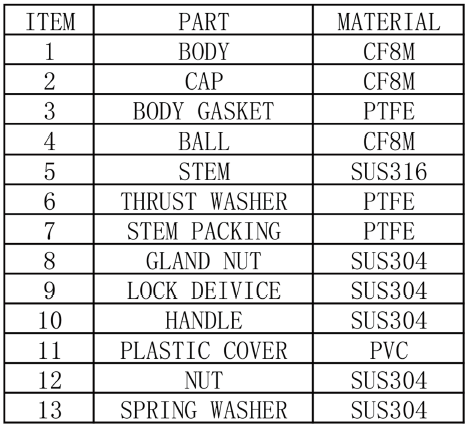

Material list - 1 Piece Stainless Ball Valve

• ● All internal parts that come into contact with the product being transported are 316 stainless Steel.
• ● PTFE/Teflon Seals and Seat, make this 1 piece SS ball valve suitable for any medium that is compatible with both PTFE/Teflon and Stainless Steel.
• ● This Ball Valve has only one body part with no joints, making the body leak proof.
• * CF8M is the modification made to the CF8 Alloy which makes CF8/CF8M equivalent to Stainless Steel 316.

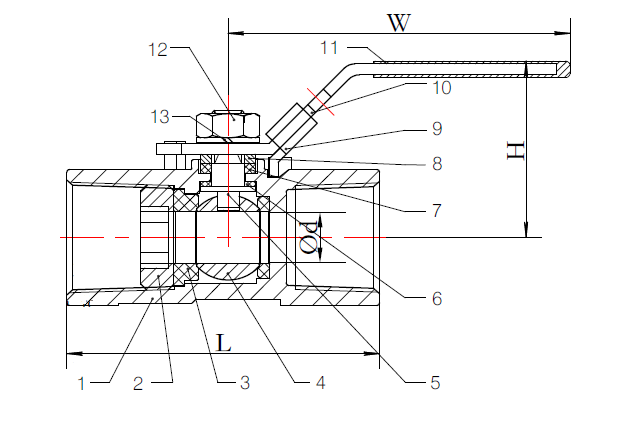

General Dimensions - One Piece Ball Valve



• ● The pipe size determines the valve size, so a 1" pipe will require a 1" Valve.
• ● Threaded at both ends making them quick and easy to install. (No Tools required for Installation.)



Pressure Chart: 1 Pc SS Ball Valve

• ● Pressure Rating is 1000 PSI at normal room Tempratures



Why is it called a One Piece Ball Valve?

• The one piece ball valve has no body joints which means the body is made out of of one pieces, giving rise to the name “one" piece.



How to use a Ball Valve:

• Flow is controlled with a 90 degree turn of the handle.
• When the handle is at 90 degrees to the flow, then the flow is off.
• When the handle is parallel with the flow, then flow is open.



Function of the Ball Valve:

• To provide a simple 'flow on' or 'flow off' control function.
• Through a process called throttling, the flow rate can be regulated by partially opening or closing the valve.



Installing a Ball Valve:

•  To Install into your application simply thread Male Threads of the same size into either of the female threaded ends



Why is a One Piece Ball Valve a Reduced port?

• This 1 piece body design doesn't allow a larger ball to be installed at the time of manufacture, making this a standard bore ball valve (Reduced port) .
• Reduced port means that the inside diameter (ID) is one size smaller than the pipe it is connected to.
• This means that pressure drop and flow rate can be affected.



Advantages of a 1 Piece Ball Valve:

• Since there are no body joints, this valve is not likely to leak from the body.
• They are robust and durable.



Custom Labelling

• ● Handle covers can be custom labeled with a choice of colors besides the usual blue plastic cover
• ● Brand your ball valve with your company's name
• ● Label your valve according to the function it performs in order to avoid confusion and increase safety.



One Piece Ball Valve Spare parts

• ● Spare parts available in all sizes and include:
• ● Handles with Latch Lock.
• ● Seals and Seats in Teflon (PTFE).
• ● Handle Covers.



1 Piece Stainless Valve for no leaks

• ● The main advantage is that this valve has no body joints,his reduces the chance of leaks in the body.
• ● This is useful in robust environments or where little or no servicing is possible.



1 Pc Stainless Steel Ball Valves for durability

• ● Since there is only one body part, the body cannot fall apart.
• ● The handle is made with a blow-out proof stem enabling them to function in pressures reaching 1000 PSI.
• ● Since it is manufactured from high grade stainless steel 316, it is durable, rust immune and chemically resistant to many solutions.



Leading Supplier of 1 Stainless Steel Ball Valves

• ● We supply a variety of sizes of the 1 SS Ball Valves to a many industries across the U.S.
• ● We keep good stock levels which allow us to supply most valves as ordered.
• ● We can also special order large quantities as well as customize ball valve handles.
• ● To find out more about our 1 piece valves call us at (951) 279-5500.
