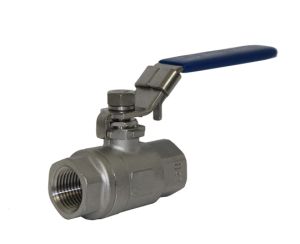

This compact 2-1/2 inch two piece ball valve with 2-1/2” female NPT thread on either end for easy connection. It is manufactured using high grade 304 stainless steel. It is a full port design, rated at 1000 PSI, and WOG ready (Water, Oil, Gas). It is Designed to control flow on a 2-1/2” pipe line with a simple “on” and “off” turn of the handle. Handles can be locked in the open or closed position using a latch lock.

• Product description:
• ● 2-1/2” Female NPT Threaded, Two Piece, Full Port Ball Valve
• Uses:
• ● Used to control flow in a 2-1/2" pipe line, with a simple "on/off" action.
• Port (Bore):
• ● Full Port.
• Thread:
• ● 2-1/2” Female NPT Threads x 2-1/2” Female NPT Threads.
• Pressure Rating:
• ● 1000 PSI (WOG).
• Handle Type::
• ● Lever Type Handle with a locking latch.
• Handle Stem:
• ● This 2-1/2" quarter turn valve is fitted with a stem that has a Blow Out Proof Design.
• Also Called:
• ● 2-1/2" Quarter Turn Shut Off Valve
• Material of Construction:
• ● 304 Stainless Steel.

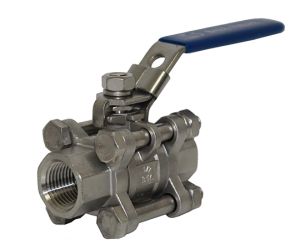

• ● Scroll down to “Related Products” for 316 options as well as 3-Piece Options.

Specifications:
