3/4" Quick (EZ) Clean Valve
In stock
SKU
BV075-EZ
| Size | 1/2" & 3/4" |
|---|---|
| Material | Stainless Steel 304 |
| Part Number | BV075-EZ |
| Thread | 1/2" & 3/4" Tri-Clamp Connection |
| Seal | Teflon (PTFE) |
$40.05
1/2" & 3/4"
CLICK HERE for all Sizes

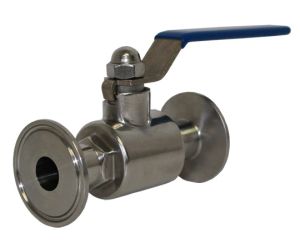

This quick clean take apart valve comes with a 3/4" tri-clamp connection and is a full port valve. It is manufactured with 304 stainless steel and is also known as an easy clean tri clover ball valve.
- Description:
- ● A 3/4" Two Piece Ball Valve with a Tri-Clamp fitting holding the two body parts together.
- ● 3/4" Tri-Clover connection ends
- ● Polished to a sanitary finish.
- Uses:
- ● Easy (EZ) clean take apart ball valves are used as you would use a 3 piece ball valve.
- Installation:
- ● Will connect to 3/4" tri-Clamp Flange ends.
- Cleaning:
- ● The 3/4" Quick Clean Tri-Clamp Ball Valve is a 2-piece tri-clamp ball valve with a Tri-Clamp in the body of the valve.
- ● When this Tri-Clamp in the valve body is removed, the quick clean ball valve can now be easily be taken apart for cleaning or servicing.
- Port:
- ● Full Port.
- Materials:
- ● 304 Stainless Steel.
Specifications:
- ID: 0.625"
- Tri-Clamp Flange OD: 0.984" (1/2" & 3/4")
- Over All Length (OAL): 3.625"
| Size | 1/2" & 3/4" |
|---|---|
| Material | Stainless Steel 304 |
| Part Number | BV075-EZ |
| Thread | 1/2" & 3/4" Tri-Clamp Connection |
| Seal | Teflon (PTFE) |
