Why is it called a Three Way Ball Valve?

• Three way valves have 3 ports allowing them to divert flow to one of two directions or mix flow from two sources, where as 2 way vales only have 2 ports and can only start or stop flow.



The two different styles of 3-Way Valves:

• T-Port Valves - also called diverter valves and can divert flow in one of two directions, or they can select flow between one of two sources.
• L-Port Valves - Also Called mixing valves and can combine two sources into one out let flow, or they can split a single source into two different directions.



Function of the 3-Way Ball Valve:

• To direct flow.



Installing a 3-Way Ball Valve:

•  To Install into your application simply thread Male Threads of the same size into either of the three female threaded ends.



Advantages of a 3 way Ball Valve:

• It allows you to divert flow from to one of two directions or to select flow from one of two sources.
• It allows you to mix flow from two sources or to divide the flow into two directions.



 Features

• ● Suitable Mediums: Water, Oil and Gas (WOG)
• ● Seals: PTFE/Teflon
• ● Port Size: Reduced Bore Ball Valve (Standard Port, ID drops one pipe size)
• ● Threads: Female Thread NPT (National Pipe Thread)
• ● Handle Style: Lever style handle, the handle stem is designed to be blow-out proof.
• ● Locking Device: Latch locking lever device on the handle so it can be locked in the open & closed position (can be removed).



Performance Specifications:

• ● Pressure: 1000 PSI

• ● Temperature:-13 to 302 degrees Fahrenheit



 Material list - 3 way Stainless Ball Valve

• ● All internal parts that come into contact with the product flow are  stainless Steel 316.
• ● PTFE/Teflon Seals and Seat, make this 3 way SS ball valve suitable for any product medium that is compatible with both Stainless Steel and PTFE/Teflon.
• ● Three ports allow for a variety of different option foe flow direction.
• * CF8M is the modification made to the CF8 Alloy which makes CF8/CF8M equivalent to Stainless Steel 316.

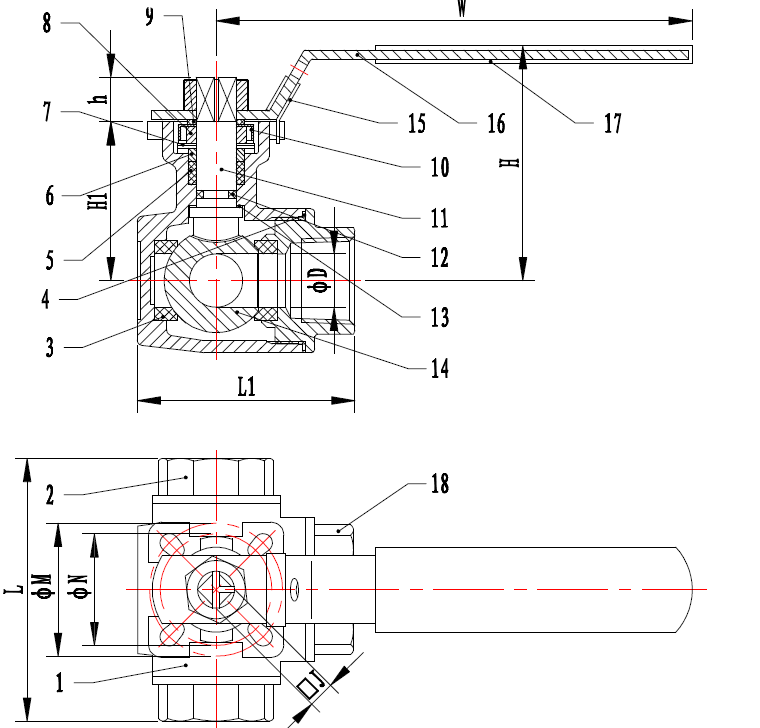

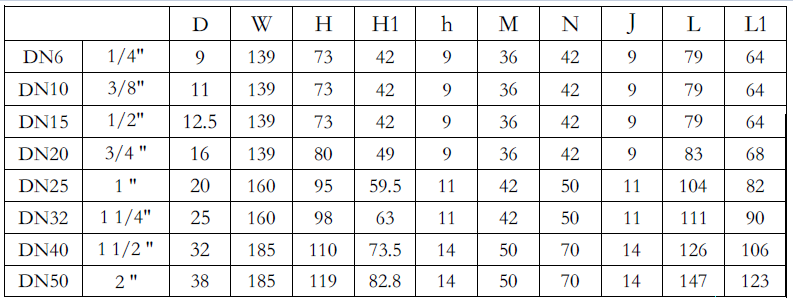

General Dimensions - Three Way Ball Valve

• ● Athe valve size will be determined by the pipe size, so a 3/4" pipe will require a 3/4" valve.
• ● Threaded at all three connection ends make them easy to intall.

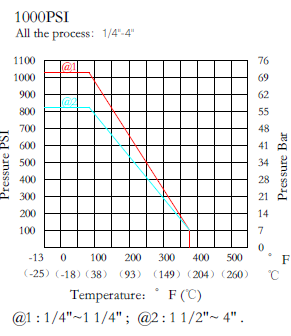

Pressure Chart: Three Way SS Ball Valve

• ● Pressure Ratingat normal room Tempratures  is 1000 PSI.



Custom Labelling

• ● Plastic Handle Covers can be custom labeled (Choice of colors available).
• ● Label your valve handle according to the function it performs in order to avoid confusion and increase safety.
• ● Brand valve with your company's name.



Three Way Ball Valve Spare parts

• ● Spare parts available in all sizes and include:
• ● Lever Handles with Latch Locking Device.
• ● Seals and Seats in PTFE/Teflon.
• ● Plastic Handle Covers.



3 Way Stainless Valve for Mixing & Diverting

• ● T-Port Valves mix flow to one port or divided flow to two ports.
• ● L-Port Valves divert flow to one of two ports, or selct flow from one of two sources



Durable

• ● The handle stem is made with a blow-out proof design allowing them to function in pressures up to 1000 PSI.
• ●  Being manufactured from high grade stainless steel 316, males it chemically resistant to many solutions,durable, and rust immune.



Leading Supplier of 1 Stainless Steel Ball Valves

• ● Supply a variety of sizes of the 3 way SS Ball Valves to a many industries across the U.S.A.
• ● Good stock levels allow us to supply most valves the as ordered.
• ● We special order large quantities as well as provide special labeling for valve handles.
