• Product Description:

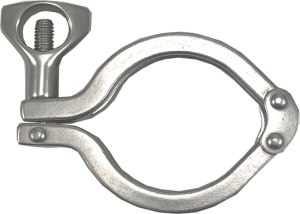

• ● 1.5" Stainless Steel High Pressure Tri-Clover Clamp.
• ● Bolted double-pin design.
• Uses:
• ● 1.5" Sanitary high pressure clamps are used to connect 1.5" tri-clover fittings together in high pressure systems.
• ● Bolted double pin design allows for stronger, more secure, leak proof connections.
• ● Suitable for temperature fluctuations and high pressures.
• Installation:
• ● Place each half of the bolted double pin clamp over two 1.5" tri-clover ferrules ends and insert a gasket in between to seal the connection.
• ● Align the flanged ends then tighten the two bolts first by hand and then with a wrench until a connection is secure.
• ● Be careful to tighten both bolts equally.
• Also Called:
• ● 1.5" High-Pressure TC Clamp
• Materials of Construction:
• ● Stainless Steel 304.

Specifications:
