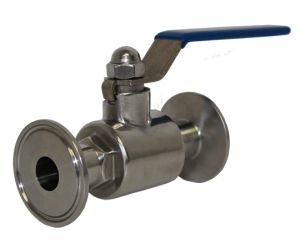

This tri clamp valve comes with a 1" connection on both ends and a 3/4" ball valve for controlled flow. It is manufactured with 304 stainless steel and widely used in food and beverage production.

• Description:
• ● A 3/4" Three Piece Ball Valve with 1" or 1.5" Tri-Clamp connection ends
• ● Polished to a sanitary finish.
• Uses:
• ● The most common way of controlling the flow of fluid in the food and beverage production.
• Installation:
• ● Will connect to 1" and 1.5" tri-Clamp Flange ends.
• Cleaning:
• ● Central body part can be removed for cleaning while leaving the tri-clamp connection ends attached to the application.
• ● Can be cleaned in place.
• Port:
• ● Reduced Port.
• Materials:
• ● 304 stainless steel.

Specifications:

• ID: 0.625"
• Tri-Clamp Flange OD: 1.984" (1" & 1.5")
• Over All Length (OAL): 4"
• Mounting Pad: ISO Pad
