Understanding Tri Clamp Ball Valves: A Comprehensive Guide

Breweries, wineries, the maple syrup industry, herbal extraction companies, home brew as well as food & beverage industries use sanitary piping to transport fluids like wine, beer, wort, maple syrup and other liquid foods. These piping systems consist of sanitary pipes, fittings, valves and other polished components. A tri clamp valve is one of the most important components of the sanitary piping systems as it is used for flow regulation, via a simple on/off flow control. They are also used to control pressure, direction control, backflow prevention, mixing and diverting, as well as safety and maintenance. The food and beverage industries use different types of tri-clamp valves made from stainless steel. This is because stainless steel is ideal for maintaining sanitary conditions, and this is critical in the biotechnology, pharmaceuticals, and food and beverage industries.

What is a Tri-Clamp Ball Valve

Also known as a tri-clover ball valve, it is a type of valve used in industries that require sanitary conditions. The valve features a hole and a ball to control gas or fluid flow. The key components and features of the valve include a tri-clamp connection, ball mechanism and sanitary design. Different types of tri-clamp valves, such as a tri-clamp butterfly valve used in these industries, are also made out of stainless steel. Tri-clover butterfly valves and other types of tri-clamp valves are designed in a way that ensures that there is no accumulation in the valve. The design makes it easy to clean and maintain. They are also suitable for clean-in-place (CIP) procedures.

How to connect a Tri-Clamp Valve

The valve has a tri-clover flange at both ends. To connect it to a sanitary system requires a gasket, two ferrules and a clamp. A ferrule is welded to the pipe’s end. The gasket creates a sealed connection. Tightening the clamp around the ferrules and gaskets creates a leak-proof and secure connection. The internal surface is smooth.

How a Tri-Clamp Ball Valve Works

The valve has a ball with a hole through its center. Rotating the ball controls the flow of the fluid. A typical valve has two positions: open and closed. Aligning the ball’s port with the flow path allows the fluid to pass through the valve. Rotating the ball 90 degrees blocks the flow of fluid. The valve features an actuator or handle to operate. The operation can be manual or automated.

Types of Tri-Clamp Ball Valves

There are many types of sanitary valves, the most common being the two-piece, the quick or easy-clean type, the 3-way, and the 3-piece. Butterfly valves are not ball valves, but are often sold for the same applications, so they will be featured below.

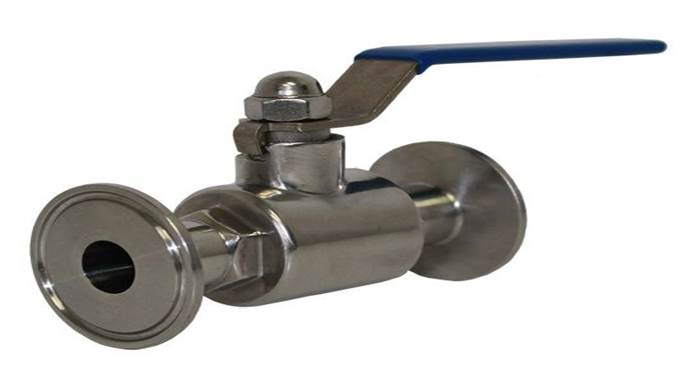

Tri-Clamp Ball Valves

Specification

Often referred to as an economy or budget tri-clamp ball valve it is the most widely used method for controlling flow in the beverage industries.. The valve features a full port for maximum flow and is made out of 304 stainless steel.

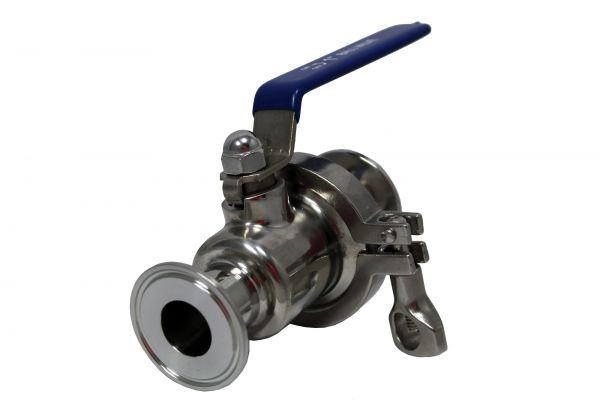

Quick Clean Tri-Clamp Ball Valves

Disassembling and assembling a quick-clean tri-clamp ball valve requires no tools, making it easy to clean. The valve generally features a full port. The valve is made out of 304 stainless steel.

Specification

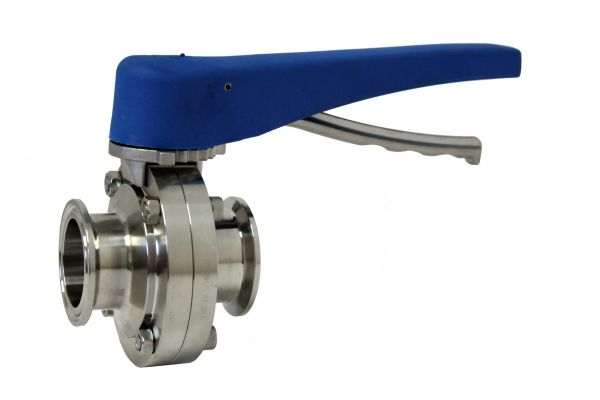

Tri Clamp Butterfly Valve – Squeeze Trigger

The valve features a disc to control gas or fluid flow. Squeezing the trigger releases the disc and allows the handle to move to various degrees of opening and closing the valve. Releasing the trigger locks the disc in place. This facilitates easy and precise flow control of various degrees from fully open to completely closed. The tri-clamp flanged ends create a secure connection to the sanitary system by connecting to other tri-clamp fittings using a gasket and a tri-clamp. This valve is also easy to clean and can also be cleaned in place (CIP). The tri clamp butterfly valve squeeze trigger can be locked in numerous different positions each corresponding to a more open or to a more closed position.

Specification

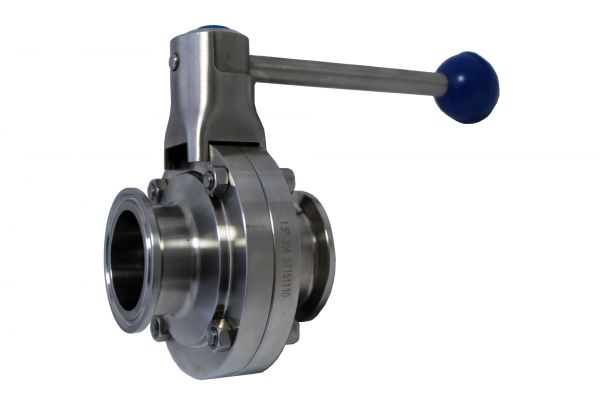

Tri-Clamp Butterfly Valve - Pull Trigger

This type of tri clamp butterfly valve features a pull trigger that can be locked in 3 different positions. The Tri-Clamp Butterfly Valve - Pull Trigger valve uses a disc inside to control fluid flow. Pulling the trigger allows the handle to be moved which in turn can move the disc to an open or closed position. The flow rate can be adjusted by pulling the trigger and moving the handle to a partially open position. Releasing the trigger unlocks the handle and the disc can be moved. To close the valve, move the disc perpendicular to the flow, to block the fluid. This valve creates a secure and sanitary connection with the tri clover flanged ends on either side. The sanitary design makes it easy to clean the valve, and also to use the clean in place process (CIP), which is why it is widely used in the food and beverage industries.

Specification

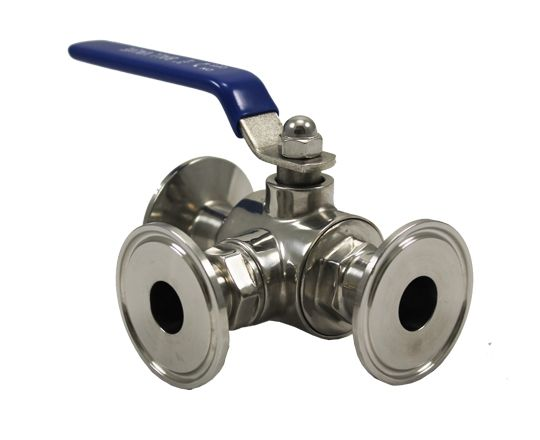

3 Way Tri-Clamp Ball Valve, T- Port

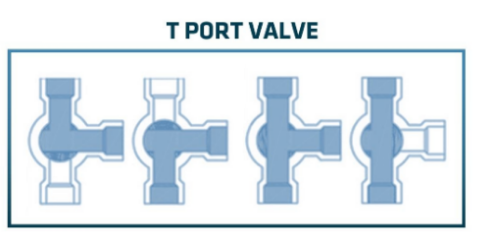

Breweries, wineries, as well as the food and beverage industries use this 3 Way Tri-Clamp Ball Valve, T- Port to mix fluids. The valve combines flow from two ports into one port. It is ideal for applications that require low flow rate. It is made of Stainless Steel 304. The valve offers 4 flow options as shown in the following image:

Specification

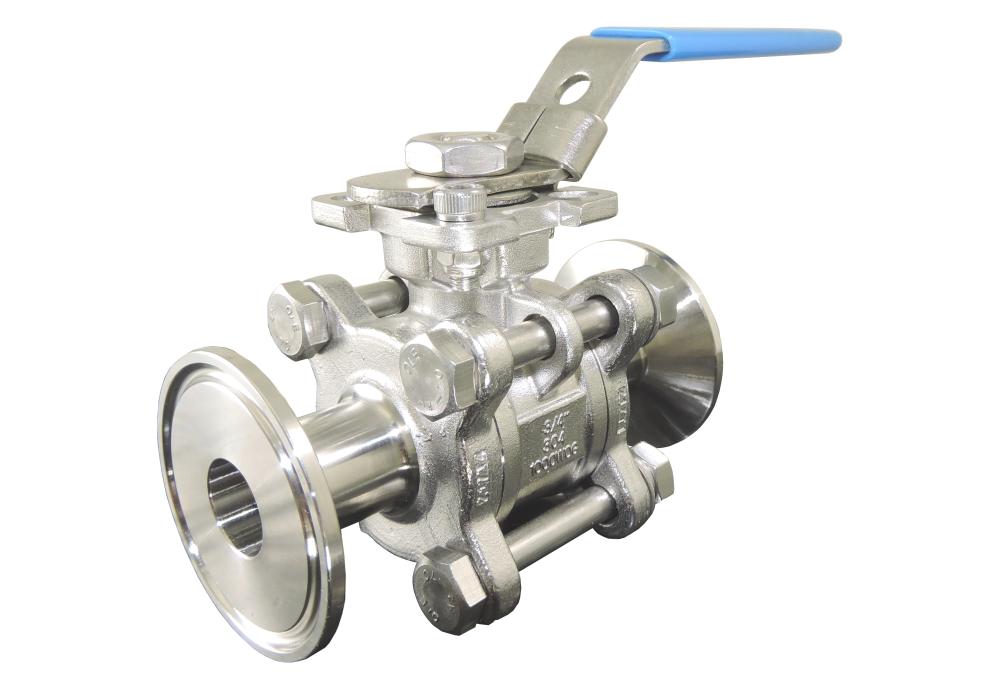

Tri-Clamp 3 Piece Ball Valves

This Tri-Clamp 3 Piece Ball Valves made out of stainless steel 304 valve is used in applications which require easy cleaning and servicing on a regular basis. The middle section with the ball can be easily removed for cleaning and servicing. The tri-clover ends remain connected to the application. The valve comes in both full port and reduced port options.

Specification

Advantages of Tri-Clamp Ball Valves

Tri-clover butterfly valves offer the following advantages for applications that require hygiene and ease of maintenance:

• Sanitary design with a secure and leak-proof connection and smooth internal surface to reduce contamination risk.
• Easy cleaning and maintenance with rapid connection removal and reinstallation.
• Durability with resistance to corrosion, high pressure, and temperature.
• Reliable performance with precise flow control.
• Safety with robust design and tight seal.
• Ease of operation with a simple handle.
• Cost-effectiveness with low-cost, long-term maintenance and servicing.

Tri-Clamp Ball Valve Applications

Breweries

Breweries require tri-clamp valves to control the flow of water, wort and beer. Breweries use valves in various stages of the process, including:

• Mash tuns
• Boil kettles
• Fermentation tanks

Food and Beverage

Food and beverage industries use these valves to manage the flow of sauces, syrups, juices and other liquids. They are also used for cleaning and sterilization.

Home Brewing

Home breweries use these valves to control the flow of wort in various parts of the setup, including fermenters, kettles, and transfer lines.

Food Processing

Food processing facilities use tri-clamp ball valves to control the flow of liquids, ingredients and cleaning solutions.

How to Select the Right Tri-Clamp Ball Valve

The following are the key considerations for choosing the right tri-clamp ball valve for an application:

• Material
• Size and flow rate
• Pressure and temperature ratings
• End connections
• Valve operation
• Sanitary requirements
• Ease of maintenance
• Budget and quality
• Certification and standard

Conclusion

Tri-clamp ball valves are indispensable components in industries demanding stringent hygiene standards. Their sanitary design, ease of cleaning, and reliable performance make them ideal for applications in food and beverage processing and breweries. By understanding the different types, their functionalities, and selection criteria, you can effectively choose the right tri-clamp ball valve for your specific needs.

Stainless Steel Ball Valves is a trusted supplier of high-quality tri-clamp ball valves made from stainless steel 304. Our products are designed to meet the demanding requirements of the industry. Contact us today to find the perfect valve for your application. Shop now!
