• Description:
• A three piece ball valve is a type of valve constructed out of three separate body components that are joined together by bolts and nuts.
• It consist of a main body and two pipe connector ends.
• Uses:
• Used as a shut off valve whenever a simple on/off flow control is required in applications where regular maintenance is required.
• Can be easily disassembled and reassembled for servicing.
• Used in applications that experience a lot of wear and tear such as high pressure and high cycle applications.
• Used in applications that require regular cleaning or sanitation.
• Advantages:
• Ease of maintenance and cleaning.
• Can be serviced without removing the entire valve from the pipeline.
• Since it is made up of three body parts, the main body part can be removed without unthreading the end connections.
• Once the main body is removed the internal components can be accessed for cleaning, maintenance and repair.
• Replacing the components is less expensive than replacing the whole valve.
• Pressure Rating:
• 1000 PSI (WOG: Water, Oil, or Gas).
• Port Size:
• Full port
• Thread:
•  Female NPT threaded end connections on both the inlet and outlet.
• Construction:
• The valve body is made out of three separate body parts that are connected together by 4 pairs of bolts and nuts..
• Maintenance:
• Generally under normal conditions they require minimal maintenance and usually it is only the seals that need replacement.
• Maintenance involves disassembling the valve to access the internal components.
• This is done by removing the 4 pairs of bolts and nuts on the outside of the valve which allows one to remove the main valve body, while leaving the end connections still installed.
• Once the main body is removed it allows access to the seals, ball, and the stem.
• Applications:
• Commonly used in applications with heavy wear and tear and in applications where regular cleaning or maintance is needed.
• Widely used in manufacturing facilities, food and beverage production, pharmaceautical and chemical processing.
• Also used where a high level of resistance to corrosion is required.
• Cost:
• Replacing the components is less expensive that replacing the valve.
• The ability to easily service these valves increase their service life thus lowering long term costs.
• Material:
• This 3 piece valve is manufactured out of stainless steel 316.

More information

A 3-piece ball valve is a type of valve that has three body parts, a main body and two pipe connector ends. The central body houses the ball, seals and stem. The pipe connector ends are usually threaded, socket weld, or flanged. Three piece valves are used to control the flow in applications that require frequent maintenance or cleaning. This three piece design allows for easy disassembly of the main body part without removing the connector ends from the pipeline, thus improving maintenance time since the entire valve does not have to be removed from the installation. Beside this time saving for maitanance, a three piece valve also saves long term costs since it is less expensive to replace components than it is to replace the entire valve. This ability of the 3 Pc ball valve to easily dissemble the valve makes them ideal for industries like food and beverage, pharmaceuticals and chemical processing where sanitation and regular cleaning are essential. 3-piece valves are also well suited to industrial and manufacturing applications where heavy wear and tear occurs resulting in the need for regular maintenance. Manufactured from stainless steel 316 they offer excellent resistance to corrosion.

Parts and Components:

Dimensions:

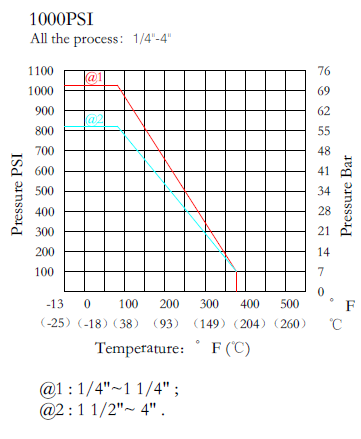

Pressure Chart:
