• Description:
• A 3000 psi ball valve is a high pressure industrial valve designed to handle a pressure of 3000 pounds per square inch (PSI).
• It has an inlet and an outlet, that are usually threaded end connections to connect to a pipeline.
• It has a lever style handle to open or close the flow of fluid.
• Two piece design complete with a mounting pad..
• Uses:
• 3000 WOG valves are used to control the flow of fluids in applications requiring a pressure rating of up to 3000 PSI.
• Used to control the flow of water, oil or gas (WOG) in very high pressure applications.
• Used in industrial settings in demanding applications where a reliable shut of mechanism is required.
• For example in industrial hydraulic lines and systems, high pressure gas lines, chemical processing systems and high pressure washing systems.
• Advantages:
• Its heavy duty and robust design allow it to handle extremely high pressure in a wide variety of applications.
• A locking mechanism on the handle provides extra safety ensuring the valve remains in the open or closed position.
• A quarter turn handle operation allows for rapid opening and closing of the fluid flow.
• Blow out proof stem provides extra safety and prevents leaks.
• The two piece design allows for maintanance and servicing.
• Since the price is reasonable it is also feasible to use these in place of 2000 PSI ball valves in cases where the pressure rating may exceed 2000 PSI.
• Pressure Rating:
• Pressure rated at 3000 PSI. (pounds per square inch.)
• WOG: Stands for Water, Oil, or Gas.
• Port Size:
• Reduced Port to handle extreme pressures.
• Thread:
• These 3000 WOG ball valves have Female NPT threaded ends on both the inlet and outlet openings.
• Construction:
• Two piece design means that the valve body is made out of two separate body components that are threaded together.
• Heavy Duty bady design weighs more than standard valves of the same size.
• Maintenance:
• The body of a 2 piece valve can be unthreaded and taken apart and to expose the seals, ball, and the stem.
• The internal seats and seals can be serviced and replaced.
• Applications:
• Commonly used in demanding industrial environments where the fluid flow needs to be controlled in very high pressure applications.
• For example in pipe lines, processing units, and well head operations.
• Material:
• This high pressure shut off valve is manufactured out of 316 stainless steel .

More information

A 3000 PSI ball valve is a high-pressure industrial valve designed to regulate the flow of fluids under a pressure of 3000 pounds per square inch (PSI). This valve uses a rotating ball with a hole through the center that rotates to control the flow of fluid, providing a secure shut off and leak proof seal. Also referred to as 3000 WOG ball valves they are designed to handle fluids like water, oil and gas (WOG) in demanding industrial applications with a maximum pressure of 3000 PSI. They operate with a simple 90 degree or quarter turn to either open or close the flow. This valve can be serviced and taken apart to replace parts due to its 2 piece body design. It has blow-out proof stem that provides extra safety under extremely high pressure conditions and a locking mechanism on the handles that enables the valve to be locked in the open or closed position for added security. Constructed from 316 stainless steel, 3000 WOG valves are capable of withstanding demanding high-pressure environments, making them ideal for use in chemical processing plants, hydraulic systems, oil and gas, and heavy duty industrial operations. These valves are valued for their durability, reliability, corrosion resistance and low maintenance, providing efficient performance and long-lasting service life in demanding applications.

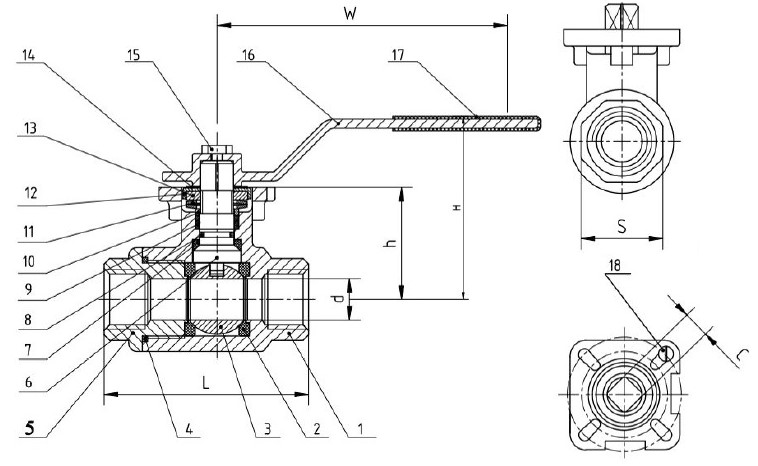

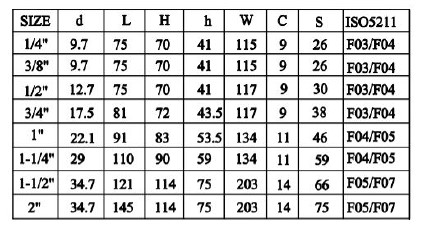

Dimensions:

Pressure Graph:

Specifications:
